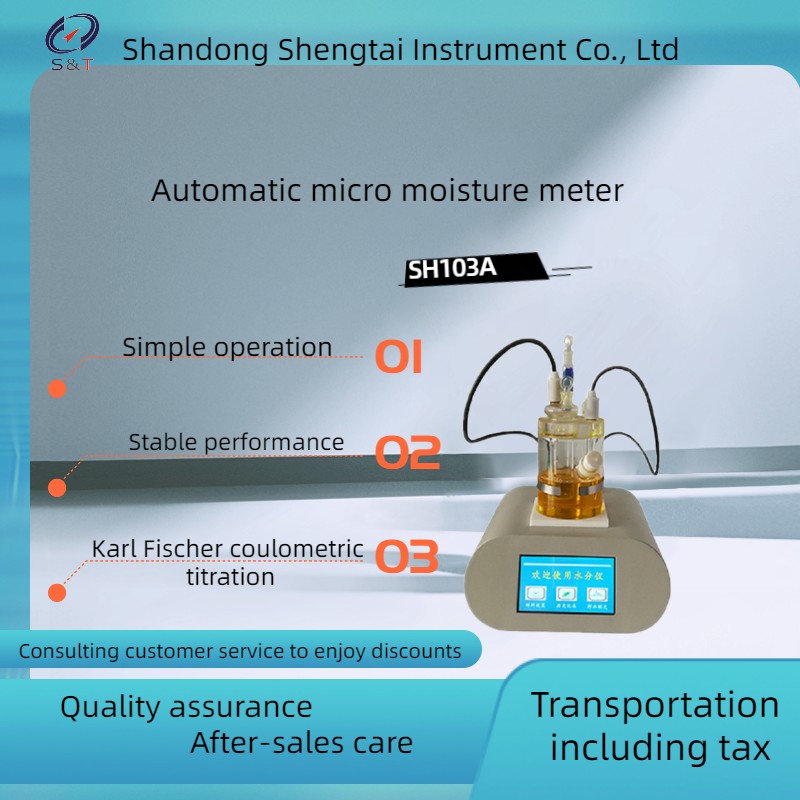

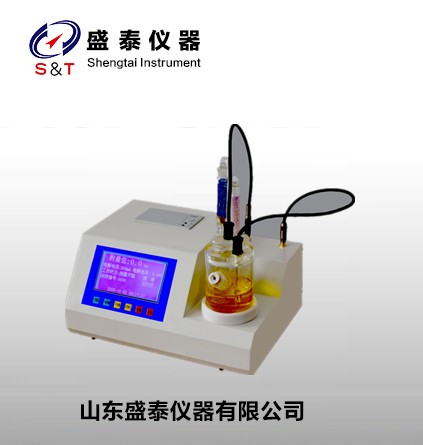

The SH103 trace moisture analyzer adopts the Karl Fischer Coulomb titration principle and adopts microcomputer automatic control. Compared with similar advanced products at home and abroad, it has advantages such as high sensitivity, fast electrolysis speed, short equilibrium time, accurate blank deduction, and accurate and reliable analysis results. It is a high-quality analytical instrument for departments such as petroleum, chemical, power, environmental protection, medicine, and scientific research.
The instrument adopts a 32-bit embedded microprocessor as the main control core, embedded in a mini operating system; The instrument comes with constant current detection and dual circuit balanced titration functions; Electrolytic cell adopts new waterproof sealing design; Supports multiple calculation formulas, in accordance with standards GBT11133 and ASTMD 0304, ASTM D1533
Technical parameters:
The Karl Fischer Coulomb method is a reliable method for determining trace moisture in different substances, in accordance with GB/T11133. This trace moisture analyzer has successfully applied this method and adopted microcomputer control. Its analysis speed is fast, accuracy is high, LCD screen Chinese display, automatic printing, dual CPU design, blank current automatic deduction function, instrument fault self diagnosis, menu selection and other functions, To achieve better operation and use, with a simple and fully automated analytical instrument. It is an ideal instrument for oil moisture analysis
Display method: Color touch screen display
Titration method: Microcomputer-controlled coulometric titration
Output method: automatic calculation, capable of outputting ug, PPM, and%
Measurement range: From 0.00001% to 100% in percentage, according to PPM, it can range from 0.1ppm to one million ppm (1ppm=0.0001%)
Resolution: 0.1ug
Electrolytic control: Automatic electrolytic current tracking control (maximum 400mA)
Titration rate: 2.5mg/min (maximum)
Sensitivity: 0.1ug to -100g, no more than 2%. Conversion from 1mg to 0.3% (excluding injection error)
Printer: 16 character needle printing paper width 44 millimeters
Power supply: AC 220V ± 10% 50Hz ± 10%
Power: 60VA
Operating environment temperature: 5-40C
Operating environment humidity: ≤ 90%
External dimensions: 380 * 350 * 390mm, approximately 18kg
Required consumables: Karl Fischer reagent, the instrument is equipped with a set of reagents, which can be purchased or self equipped after use.
DL/T 915-05,GB 5832-1986
Meet the following standards:
1. GB/T7600 Determination of Moisture Content of transformer oil in Service (Coulometric Method)
2. GB6283 "Determination of Moisture Content in Chemical Products - Karl Fischer Method (General Method)"
3. SH/T0246 "Method for determination of water content in light petroleum products (coulometric method)"
4. SH/T0255 "Additives and Lubricating Oils Containing Additives - Determination of Water Content (Coulometric Method)"
5. GB/T11133 "Method for Determination of Water Content in Liquid Petroleum Products (Karl Fischer Method)"
6. GB/T7380 "Surface active agents - Determination of water content (Karl Fischer method)"
7. GB10670 "Determination of Trace Moisture in Industrial Fluoromethanes by Karl Fischer Method"
8. GB/T606 Chemical Reagents - General Method for the Determination of Moisture - Karl Fischer Method
9. GB/T8350 "Denaturated Fuel Ethanol"
10. GB/T8351 "Ethanol gasoline for vehicles"
11. GB/T3776.1 "Determination of Water Content in Pesticide Emulsifiers"
12. GB/T6023 Determination of Trace Moisture in Industrial Butadiene - Karl Fischer Coulomb Method
13. GB/T3727 Determination of Trace Water in Ethylene and Propylene for Industrial Use
14. GB/T7376 Determination of trace moisture in industrial fluoroalkanes
15. GB/T18619.1 Determination of Water Content in Natural Gas Karl Fischer Coulomb Method
16. GB/T512 "Determination of Moisture Content in Lubricating Greases"
17. GB/T1600 Determination of Moisture Content in Pesticides
18. GB/T11146 "Determination of Water Content in Crude Oil (Karl Fischer Coulomb Method)"
19. GB/T12717 "Test Methods for Acetic Esters for Industrial Use"
20. GB/T5074 Method for Determination of Moisture in Coking Products
21. GB/T18826 Industrial 1,1,2-Tetrafluoroethane (HFC-134a)
Packing list
|
S/N |
Name |
Quantity |
Unit |
remarks |
|
1 |
SH103 automatic trace moisture meter |
1 |
set |
|
|
2 |
Electrolyte (Karl Fischer reagent) |
1 |
bottle |
500ml |
|
3 |
Electrolytic cell |
1 |
set |
|
|
4 |
Electrolytic electrode |
1 |
piece |
On the instrument |
|
5 |
Measuring electrode |
1 |
piece |
On the instrument |
|
6 |
Grinding plug |
1 |
piece |
On the instrument |
|
7 |
Stir the son |
1 |
set |
|
|
8 |
silicone pad |
10 |
piece |
|
|
9 |
Color silicone |
1 |
piece |
|
|
10 |
Vacuum grease |
1 |
piece |
|
|
11 |
25ulsampler |
1 |
piece |
|
|
12 |
1mlsampler |
1 |
piece |
|
|
13 |
Enclosed the needle |
1 |
piece |
|
|
14 |
power cord |
1 |
piece |
|
|
15 |
fuse tube |
1 |
piece |
|
|
16 |
packing list |
1 |
copy |
|
|
17 |
Certificate of approval |
1 |
copy |
|
