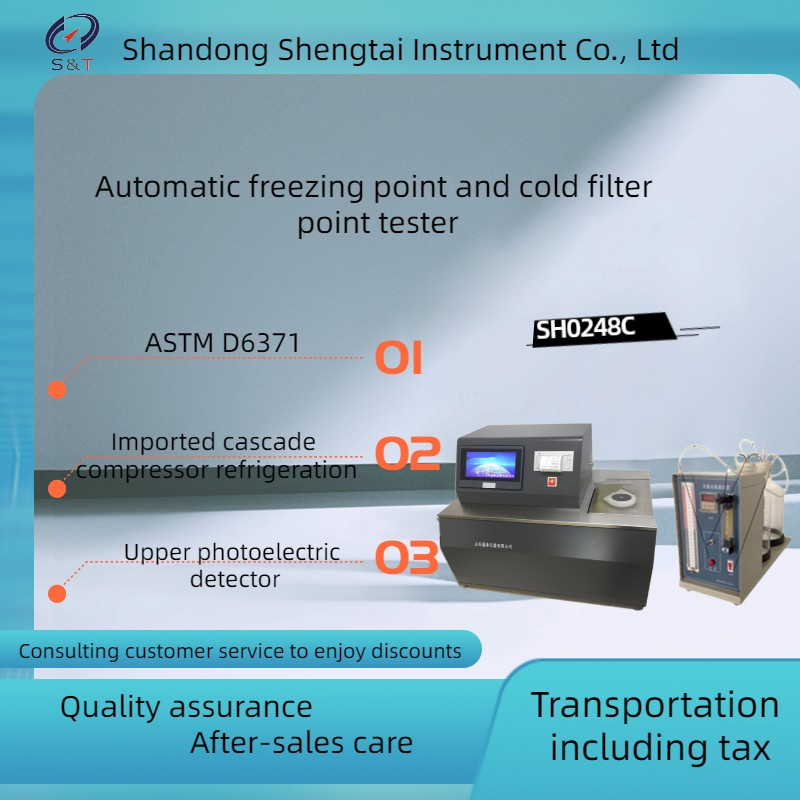

SH0248C of solidifying point cold filtration point tester is based on national standard national standard GB/T510 "solidifying point measurement of oil products and on the basis of SH/T 0248, adopt modern advanced technology, mechanical, optical, electronic and computer technology into an organic whole, can automatically finish the solidifying point and cold filtration point of petroleum products testing, the instrument adopts photoelectric detection technology, automatic inclined glass tube method, imported compressor refrigeration system to ensure that meet the requirements of refrigeration and depth.
Instrument features:
embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;
Color touch screen;
The test results can be stored;
You can view historical data;
Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.
1. Upgraded to 7-inch TFT color LCD display;
2. Refrigeration mode: fully enclosed and efficient refrigeration compressor.
3. Cold trap for test: 2.
4. Detection method: spectral detection
5, can store 199 groups of historical data, convenient query;
At the same time can be equipped with U disk output function.
6, standard micro printer automatic measurement automatic thermal printing (standard)
7. After the completion of the test, if there is no personnel to operate, set the automatic closing time of the refrigerator within 0-50min to avoid frequent opening of the compressor and prolong the service life of the instrument.
8, test interval: cold filter point 1℃ freezing point 2℃.
9, temperature sensor: imported PT 100 probe
10, refrigeration medium: metal bath
★11. Laser printer interface, can be linked to HP1108 laser printer (optional)
★12, with date password setting function.
13, standard micro printer automatic measurement automatic thermal printing
★14, with TCP network transmission function
★15, can be uploaded and connected to LIMS system
★16. Can expand the memory of the microcomputer to 16G
Technical parameters:
|
Model |
SH0248C of solidifying point cold filtration point tester |
|
Applicable standards |
GB/T510, SH/T 0248 |
|
Temperature measurement range |
-70 ~ 50℃ |
|
Pressure measurement range |
0 ~ 200.0 kPa; |
|
Resolution |
1 pa |
|
Number of test samples |
2 |
|
Temperature measuring element |
PT100 |
|
Cooling method |
air cooling |
|
Refrigeration mode |
compressor refrigeration |
|
Printing |
dot matrix printing of 20 Chinese characters |
|
Display |
128×64 Chinese characters display |
|
Storage mode |
199 sets of historical data can be stored for easy query; |
|
Results output |
at the same time can be equipped with U disk output function, output to the PC for long-term storage |
|
Data extension |
laser printer interface, can be linked to HP1108 laser printer (optional). |
|
Output format |
the output format of the result USB flash disk is CSV or EXCEL. |
Data protection |
with date password setting function.
|
|
Standard printing |
standard micro printer automatic measurement automatic thermal printing
|
|
Remote upgrade |
with TCP network transmission function, can be later software remote upgrade
|
|
Data management |
can be connected to LIMS system
|
|
Data memory |
microcomputer instrument memory can be expanded to 16G. |
|
packing list
S/N |
Name |
Unit |
Quantity |
Remarks |
1 |
Automatic cold filter point tester |
set |
1 |
|
2 |
Cold filtration point suction filtration device |
set |
1 |
|
3 |
Cold filter point test tube |
piece |
2 |
|
4 |
Pipette |
piece |
2 |
|
5 |
Suction head assembly |
set |
2 |
Brass housing, nut, strainer, etc |
6 |
Freezing point test tube |
set |
2 |
|
7 |
Condensation point sensor |
set |
2 |
|
8 |
Plastic tie |
piece |
some |
|
9 |
Silicone tube left and right |
piece |
2 |
|
10 |
Fuse |
piece |
2 |
Length and width: 100mm x2mm |
11 |
Power cord |
piece |
1 |
|
12 |
Instruction |
copy |
1 |
|
13 |
packing list |
copy |
1 |
|
14 |
Certificate warranty card |
copy |
1 |
|
