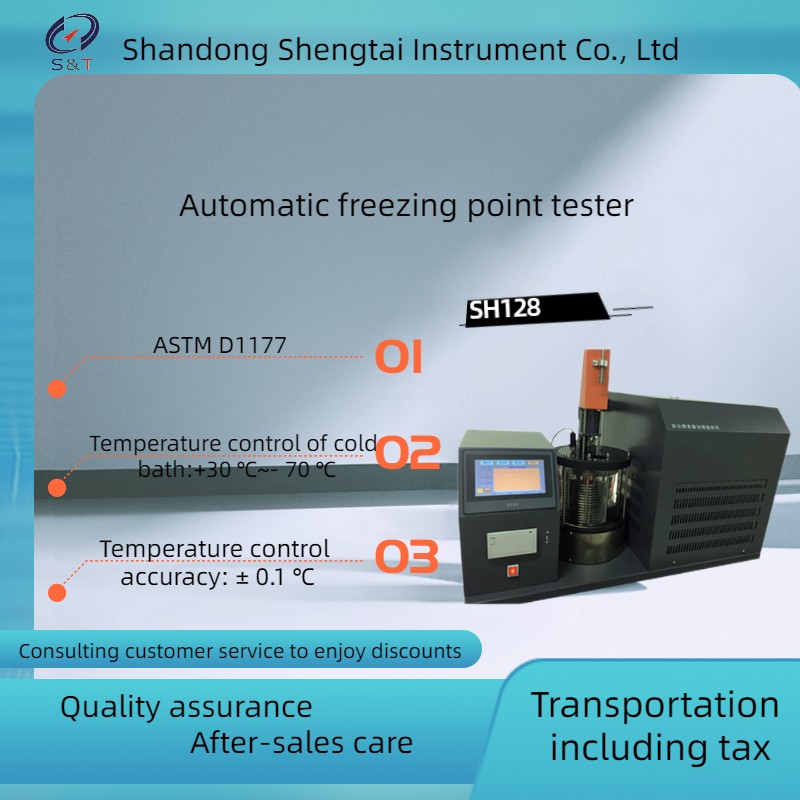

SH128 automatic antifreeze freezing point tester/ jet fuel freezing point tester is based on the national petrochemical industry standard SH/T0090-91 "engine coolant freezing point determination method" and ASTM D1177.
Suitable for measuring freezing point of engine coolant and concentrated liquid.
Instrument features: embedded system design, using imported PT100 temperature sensor, automatic detection throughout the test;
ASTM D2386, ASTM D1177 Engine Coolant Freezing Point Determination/Jet Fuel Ice Point Tester
Color touch screen;
The test results can be stored;
You can view historical data;
Printing results on the instrument, mechanical automatic mixing, experimental results can be exported through the U disk, stored in the computer can be compared for many times.
Technical Parameters: |
|
Power supply: |
AC 220V±10%, 50Hz |
Working cold trough: |
Double vacuum glass bath |
Cold trough temperature: |
+30℃~-70℃。(customized+20℃~-80℃) |
Temperature accuracy: |
±0.1℃ |
Bath mixing: |
Automatic mixing by mixing motor,power :6W,1200r/min |
Cooling system: |
Imported cascade refrigeration compressor. |
Sample stirring: |
Synchronous geared motor, 60 times/min. |
Ambient temperature: |
≤30℃ |
Relative humidity: |
About 1500W |
Total power consumption: |
less than 2000W |
Instrument size: 720mm * 450mm * 680mm Weight: 75kg |
|
Applicable standards: |
SH/T0090-91、GB/T 2430、ASTM D2386、ASTM D1177 |
Technical parameters
1, working power supply: AC220V±10%;50 hz.
2, working cold tank: double vacuum glass bath.
3, cold tank temperature control: +30℃ ~ -70℃.
(customized +20℃ ~ -80℃)
4, temperature control accuracy: ±0.1℃.
5, Bath liquid stirring: automatic stirring motor, power 6W, 1200r/min.
6, Refrigeration system: imported overlapping refrigeration compressor.
7, sample mixing: synchronous reducer motor, 1 times/second.
8. Ambient temperature: ≤30℃.
9, relative humidity: ≤85%.
10. Power consumption of the whole machine: about 1500W.
11. Instrument size: 720 * 450 * 680mm Weight: 75kg
Packing list
S/N |
Name |
Unit |
Quantity |
Remarks |
1 |
Host |
set |
1 |
|
2 |
Test bottle rubber stopper |
piece |
1 |
|
3 |
Freezing test tube |
piece |
1 |
|
4 |
Temperature sensor |
piece |
1 |
|
5 |
Power cable |
piece |
1 |
|
6 |
instructions |
copy |
1 |
|
7 |
Packing list |
copy |
1 |
|
8 |
Certificate warranty card |
copy |
1 |
|
